Custom Resource Definition (CRD)

It is a powerful structural blueprint that allows us to extend the core K8s API. A CRD allows us to define our own custom object type (e.g., a Database, a TLS certificate, or a BackupSchedule) directly within a system. Once we apply a CRD, the K8s cluster treats our custom object as an official, native resource just like a standard Pod.

Out of the box, K8s only understands a fixed set of built-in objects like Pods, Services, and Deployments.

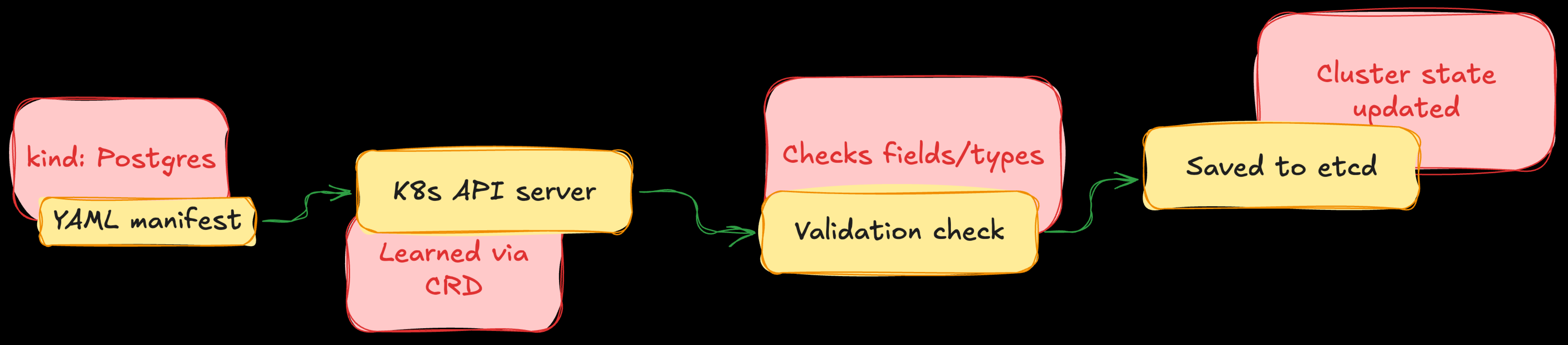

How does it work?

A CRD works by teaching the K8s API Server a new structural schema using OpenAPI validation.

Definition: We write a CRD manifest that declares the new object’s group, version, names, and acceptable configurations (e.g., stating that a Postgres resource must have an integer field called replicas).
Registration: By applying the created blueprint to the cluster. The API Server updates itself and creates new API endpoints(e.g., /apis/://mycomapnt.com).
Storage: When a user submits custom YAML manifests the created new blueprint, the API Server validates the data types. If correct, it saves the object directly into the cluster’s database (e.g., etcd).

A CRD by itself is just a passive data record in a database. It doesn’t do anything. To make it functional, we pair it with a Custom Controller (the Operator). The Operator continuously watches that data record and provisions real resources (like servers, disks, or code) to match it.

How to create and use a CRD (step-by-step)

Definition

The following manifest defines a brand-new resource called a Postgres. It mandates that any user trying to create one must specify a string for the engine version and an integer for the replicas.

echo >> postgres-crd.yml < "EOF"
apiVersion: apiextensions.k8s.io/v1
kind: CustomResourceDefinition
metadata:
    name: ://mycompany.com
spec:
    group: ://mycompany.com
    versions:
        - name: v1
          served: true
          storage: true
          schema:
            openAPIV3Schema:
              type: object
              properties:
                spec:
                  type: object
                  required: ["engineVersion", "replicas"]
                  properties:
                    engineVersion:
                        type: string
                    replicas:
                        type: integer
                        minimum: 1
                        maximum: 10
    scope: Namespaced
    names:
      plural: postgresclusters
      singular: postgrescluster
      kind: PostgresCluster
      shortNames:
      - pg
EOF
kubectl apply -f postgres-crd.yml

Custom Resource (CR) creation (Using the blueprint)

After applying postgres-crd.yml, our cluster knows what a PostgresCluster is.

echo >> my-db-insance.yml < 'EOF'
apiVersion: ://mycompany.com
kind: PostgresCluster
metadata:
    name: production-db
spec:
    engineVersion: "16.2"
    replicas: 1
EOF
kubectl apply --filename my-db-instacnce.yml

Troubleshooting

List all registered CRDs in the cluster
```
kubectl get crds
```
Inspect the exact validation schema of your new CRD:
```
kubectl describe crd ://mycompany.com
```
List individual instances of our new custom object: We can use plural, singular, and short form of the resource
```
kubectl get pg
```
View details of a specific custom instance:
```
kubectl describe pg production-db
```

Applying an invalid custom resource manifest (e.g., passing more than 10 replicas or using string in place of integer) instantly will be rejected with a validation error by API server preventing corrupt configuration receiving to oue cluster.

It is possible to override or update the values inside a CRD---for example, minimum and maximum number of replicas. However, since a CRD defines the global structural schema for the entire cluster, we must follows specific rules to make these structural changes safely.

Changing CRD file (the declarative way; recommended): Applying the CRD after the changes

# postgres-crd.yml (updated snippet)
properties:
    replicas:
        type: integer
        minimum: 1
        maximum: 10

Quick fix (the direct imperative): In this way we update the live YAML spec in our editor of choice after saving and exiting our editor. API Server instantly updates itself.
```
kubectl edit crd ://mycompany.com
```

⚠️ Critical production look around

Existing Custom Resource are NOT automatically validated on change. For example, the number of replicas is stored in etcd, and changes to the main CRD won’t update it.
Future updates are blocked: the future request on update or change on an active cluster fails if it violates the updated CRDs definitions.
Consistency between controller and CRDs: if the Operator code hardcoded a variable changing the definition in CRD won’t work until the Operator’s binary code respects the new limitations.
